A young tree can look harmless beside a driveway until the first crack appears. In North Georgia, that change can happen where homeowners least expect it, especially when roots follow loose utility trenches or gaps created as clay soil expands and shrinks. If you're searching for tree root barrier installation after seeing lifted pavement, slab cracking, or roots pushing toward a foundation, the important question isn't just which product to buy. It's where the barrier goes, how deep it sits, and whether you're protecting a new planting or managing an established tree.
The same decision affects a homeowner in Marietta, a property manager in Roswell, or an architect planning a site in Alpharetta. A barrier can redirect roots, but it can't erase an existing root system or make unsafe excavation risk-free. The sections below focus on the practical choices that determine whether a root barrier supports long-term tree health or becomes an expensive underground shortcut.
When a Tree and a Slab Stop Getting Along
A Marietta homeowner plants a young sweetgum about fifteen feet from the driveway. The tree establishes quickly, the canopy looks healthy, and nothing seems wrong through the first season. Within twelve months, a hairline crack appears across the garage slab. It may not be possible to blame the tree without investigating soil movement, drainage, construction, and root location, but the timing is enough to justify a careful site assessment.
That's where many homeowners make the wrong first move. They see roots, cut what's visible, and assume the problem is solved. A root barrier is different. It acts as an underground wall that redirects roots away from a target, such as a slab, sidewalk, retaining wall, sewer lateral, or foundation. It doesn't eliminate root growth, and it doesn't repair concrete that has already moved.
Practical rule: Prevention is planned before or during planting. Mitigation is a retrofit intended to reduce an existing conflict around an established tree.
In Atlanta-area clay, roots often exploit the paths people have already disturbed. Foundation backfill, irrigation trenches, downspout lines, and utility corridors can offer looser soil than the surrounding ground. Shrink-swell movement can open and close gaps near slabs and foundations, giving roots another route toward moisture and oxygen. The barrier has to intercept that route without removing too much of the tree's anchoring root system.
For homeowners comparing tree roots damaging a foundation, the main decision is whether the tree is a future risk or an active problem. A young tree gives you more room to install a continuous barrier before structural roots spread. A mature oak, silver maple, or sweetgum requires more caution because trenching can disturb roots that support the tree.
Species matters, too. Sweetgum, willow oak, and silver maple can create more persistent surface-root conflicts than smaller, slower-growing trees. The right installation begins with the tree, the target being protected, and the direction roots are most likely to take.

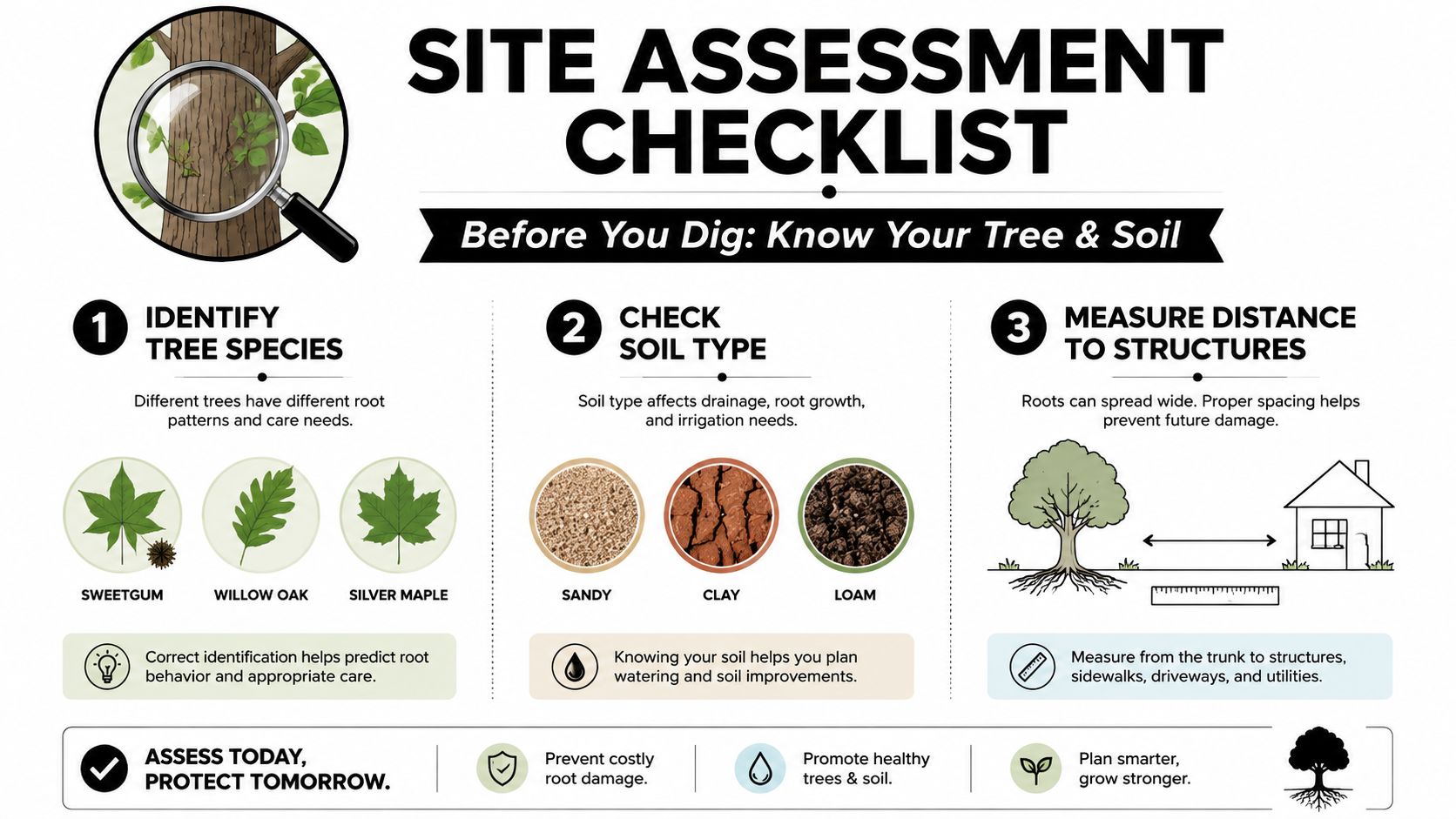

Reading Your Site Before You Dig
A good site walk prevents a bad trench. Before you mark a barrier line, identify the tree as accurately as you can, then examine the ground between the trunk and the structure. A nursery tag, arborist assessment, or local tree identification guide can help distinguish sweetgum from willow oak or silver maple. Root behavior varies by species, age, soil moisture, and available rooting space.
Start with the ground and the target
Walk the perimeter and note sandy pockets, compacted areas, heavy clay, standing water, and places where downspouts discharge. Roots commonly follow moisture and lower-resistance soil, so a trench for a sewer lateral or irrigation line may become more important than the straight-line distance between the tree and foundation.
Measure from the trunk to the foundation, driveway, sidewalk, retaining wall, or utility feature you're protecting. Estimate the dripline, then identify the area that needs extra protection around the trunk. A commonly used planning guide protects a critical root zone inside 1.5 times trunk diameter, but excavation near a mature tree still requires professional judgment.
Document what already exists
Photograph cracks, lifted pavement, exposed roots, and drainage problems. Place a dated object or measuring reference beside each feature so you can compare movement later. This record won't prove that roots caused the damage, but it gives an arborist, foundation professional, or property manager a clearer starting point.
A useful reference on root depth is this guide to how deep tree roots are. It reinforces why a shallow trench can miss the root zone that matters.
If the project includes a hardscape edge, compare the proposed barrier with other durable site-edge solutions, including durable concrete borders for Ottawa. The materials differ, but the design principle is similar. A boundary only works when it stays continuous, stable, and properly positioned.
Finish the walk by choosing prevention or mitigation. Prevention allows a planned barrier around a new tree. Mitigation demands a root-risk review before trenching because the tree may already depend on roots in the proposed path.
Choosing Between Physical Chemical and Biobarriers
The three main barrier families solve the same general problem through different mechanisms, but they don't carry the same risks in a North Georgia residential setting.
| Barrier Type | Typical Lifespan | Depth Tolerance | Atlanta Clay Performance | Relative Cost |
|---|---|---|---|---|
| Physical panels or membranes | Long service when correctly installed | Depends heavily on depth and continuous seams | Predictable when vertical and deep enough, but clay movement can expose the top edge | Moderate |
| Chemical barrier | More limited effective life | Sensitive to placement and soil conditions | Less predictable where drainage and shrink-swell movement affect chemical distribution | Variable |
| Biobarrier fabric | Long-lasting root-inhibiting performance when correctly installed | Depends on burial depth and intact fabric | Useful in selected narrow trenches, but installation quality remains critical | Moderate to high |
Physical barriers, often HDPE panels or geotextile membranes, create a solid or root-resistant plane. Their performance depends on a smooth trench face, vertical placement, adequate depth, and joints that don't leave a bypass. They're usually the most practical option for prevention and for many residential retrofits because the installer can inspect the barrier during installation.
Chemical barriers use slow-release herbicides along a root path. They may help where a physical trench is difficult, but the outcome depends on soil contact, water movement, concentration, and the surrounding environment. In clay with variable drainage, it's harder to treat the root path as a controlled system. Chemical products also demand careful attention to labels, nearby plants, water movement, and local requirements.
Biobarriers use fabric impregnated with a root-growth inhibitor. They occupy a middle ground, combining a physical fabric with a chemical zone. This can suit a narrow installation where a rigid panel is difficult to place, but the fabric still has to remain continuous and correctly buried.
The practical choice: Physical barriers usually offer the clearest, most inspectable solution. Chemical and biobarrier systems fit narrower situations where trenching is impractical and the site can support careful product-specific installation.
No barrier family compensates for poor depth or a broken seam. Product branding matters less than the installation line, root behavior, and soil conditions.

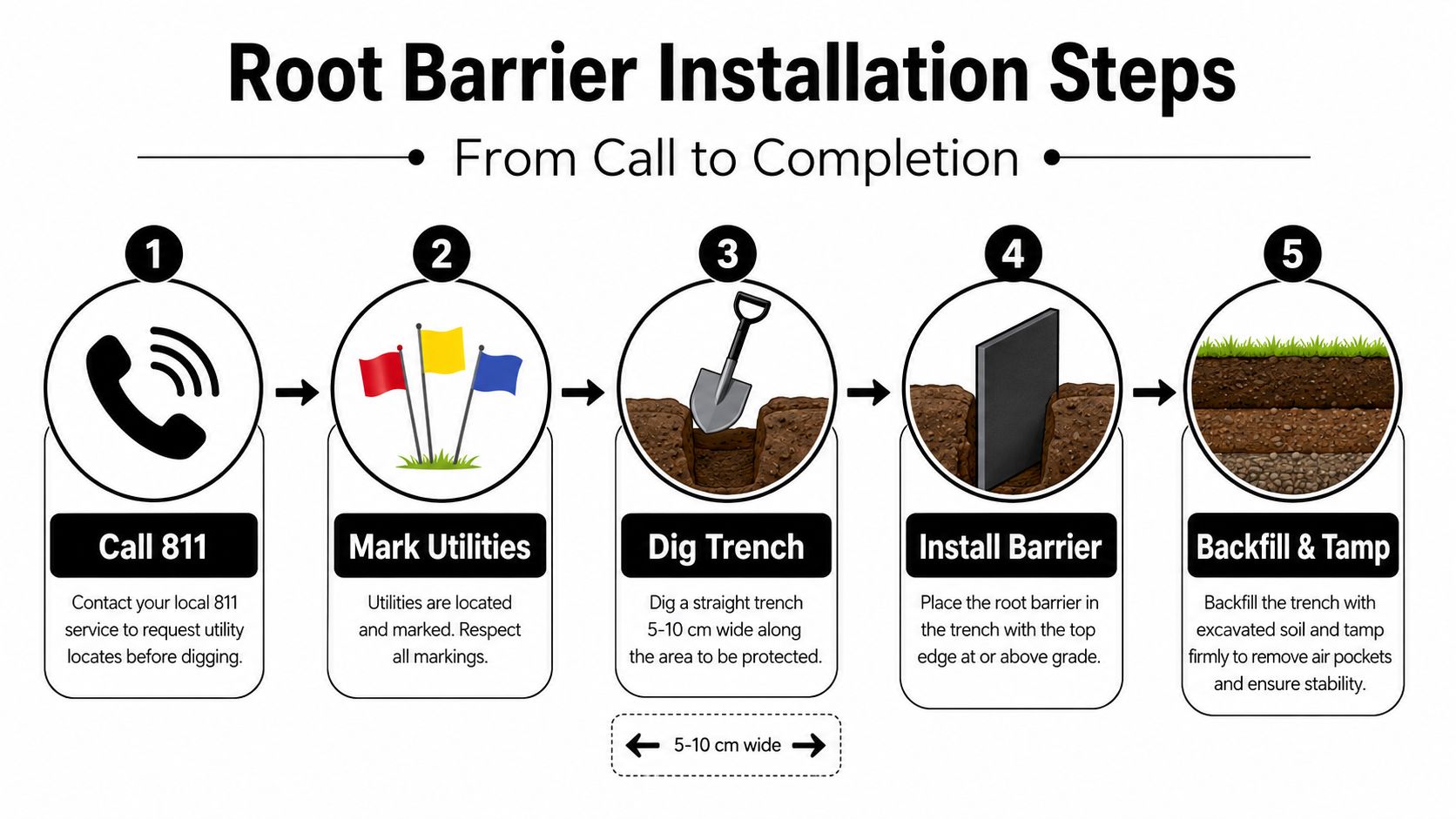

How to Install a Root Barrier Step by Step
Call 811 before excavation. Mark the proposed barrier route, identify utilities, irrigation, drainage, and low-voltage lines, and don't assume that a visible utility route is the only route on the property. A root barrier trench can cross the same disturbed ground that carries the services you're trying to protect.
Set the line before opening the soil
Lay out the barrier between the tree and the protected feature. A straight line may be appropriate beside a sidewalk or curb, while a curved layout may better protect a foundation without cutting through the tree's most important roots. Keep the barrier far enough from the trunk to avoid unnecessary root concentration and anchoring damage.
Dry-trench a narrow slit, commonly 5 to 10 cm wide, using a trencher where access allows or hand tools in tight root zones. The exact depth depends on the tree, soil, and protection target. Keep the trench face as smooth as possible so the panel sits flush instead of leaving a soil pocket that roots can exploit.
Install the continuous wall
Cut HDPE or vinyl panels to the required length with a circular saw suited to the material. Lower each panel vertically against the foundation or pavement side of the trench, then overlap joints by at least 30 cm so roots can't find a straight lateral opening.
Research links outcome directly to installation depth. In a USDA Forest Service study of Chinese hackberry, barriers installed at 60 cm reduced surface-root dry mass by 85% to 89%, while a 30 cm installation was judged inadequate for reducing surface root biomass and root diameter. The results are reported in the International Society of Arboriculture study.
Backfill halfway with compacted native soil, check that the barrier remains plumb, and then finish filling the trench. Set the top edge about 5 cm below grade so surface roots can't easily grow over it, while avoiding a depression that collects water.
Before leaving, remove excess soil, restore the surface, and place a durable marking flag or property record showing that an underground barrier exists. Future property designers, fence installers, and tree service crews need that information before they dig.
For a visual overview of the sequence, watch the installation demonstration below.
What Research Says About Established Trees
A barrier around a mature tree is a mitigation tool, not a guarantee. The tree already has an established root network, and placing a trench between that tree and a slab can interrupt roots that contribute to stability, water uptake, or stored energy. That's why the safest retrofit begins with root location and tree-risk assessment, not a rental trencher.
Research provides a clear depth lesson. The Chinese hackberry work cited above found that 60 cm barriers reduced surface root dry mass by 85% to 89%, while 30 cm was inadequate for the measured surface-root objective. A separate ISA evaluation found that 45 cm deep barriers installed 60 cm from trunk centerlines significantly altered root development near trees after seven years. Those findings don't mean every property will produce the same result. They do show that depth and offset influence performance more than a product label alone.
| Barrier Depth | Typical Outcome | Observed Lifespan |
|---|---|---|
| 30 cm | Often inadequate for reducing surface-root biomass and diameter | Performance can fail as roots bypass below the barrier |
| 45 cm | Can significantly alter root development when offset is appropriate | Significant effects observed after seven years in an ISA evaluation |
| 60 cm | Stronger reduction and redirection of surface rooting | Meaningful control documented for six years or more in field evaluations |
The six-year evaluation of circular barriers found that several low-cost physical designs and materials could nearly eliminate large surface roots to a 180 cm radius from the trunk for at least six years after planting. That evidence applies most directly to young planted trees and controlled installations, not every mature-tree retrofit.
Offset matters as much as depth. A panel placed too close to the trunk can concentrate roots against the barrier or force damaging cuts through structural roots. A panel placed too far away may leave the slab unprotected. Species also changes the calculation. Shallow-rooted sweetgum and willow may respond differently from deeper-rooting oaks.
The same logic used when planning ground screws for decks applies here in a broader sense. Underground work succeeds when the load, soil, location, and installation path are considered together. A properly installed 60 cm barrier can provide meaningful protection for new plantings and partial relief around established trees, but it won't promise that roots never escape.
Costs Permits and When to Call a Pro
A small, accessible barrier can be a reasonable homeowner project when it protects a young tree and the utility route is clear. HDPE or vinyl panels commonly run $4 to $8 per linear foot, so a 50-foot project totals roughly $200 to $400 in materials. A trencher rental can add $150 to $300 per day, with the actual effort depending on access, roots, soil moisture, and disposal.
Contractor-installed barriers in metro Atlanta commonly run $25 to $45 per linear foot, with depth, clay conditions, landscaping, utilities, and root pruning influencing the estimate. Treat those figures as planning ranges, not a quote. A site in East Cobb with tight side-yard access can require a different approach from an open lot in Canton or Woodstock.
Permit questions come before excavation
Atlanta's tree ordinance generally requires a permit to remove or destroy a protected tree on private property when it measures 6 inches or more in DBH, and trees larger than 12 inches DBH may trigger different replacement or recompense rules depending on lot tree cover, as described in the Atlanta tree ordinance. Atlanta arborist guidance also identifies a separate 12-inch DBH permit threshold for pines, so homeowners should confirm the current requirements before removing or substantially damaging a tree. The Atlanta tree-saving guidance explains why size thresholds matter even when species and tree condition differ.
A barrier installation may not be the same as tree removal, but trenching and root cutting can still affect a protected tree. Confirm requirements with the relevant municipality before work begins, particularly in Atlanta, Marietta, Roswell, Alpharetta, Milton, or jurisdictions across Cobb, Cherokee, Forsyth, and Gwinnett counties.
Know when the job exceeds homeowner risk
Hire an ISA-certified arborist when the tree is mature, heritage-sized, leaning, close to a foundation, or within the proposed trench. Get professional help when structural roots are visible, utilities or irrigation lines complicate the route, or the barrier would pass through the likely critical root zone.
A consultation may cost $150 to $400, but the value is avoiding unnecessary root cutting, tree instability, or a much larger structural repair. Use this guide to finding a tree contractor online to compare credentials, insurance, scope, and written estimates rather than choosing solely on the lowest bid.
If the situation includes a hazardous tree, leaning trunk, fallen tree, or storm-damaged limbs, don't combine barrier work with emergency cleanup unless the site is safe. Texas A&M Forest Service advises that hanging or broken large limbs and overhead chainsaw work should be handled by an ISA-certified arborist, with downed power lines and dangerous branches checked before entering the area. The Tree Care Industry Association also describes storm-damage cleanup as particularly dangerous and recommends professional arborist help and appropriate contact with emergency services or the utility company when needed.

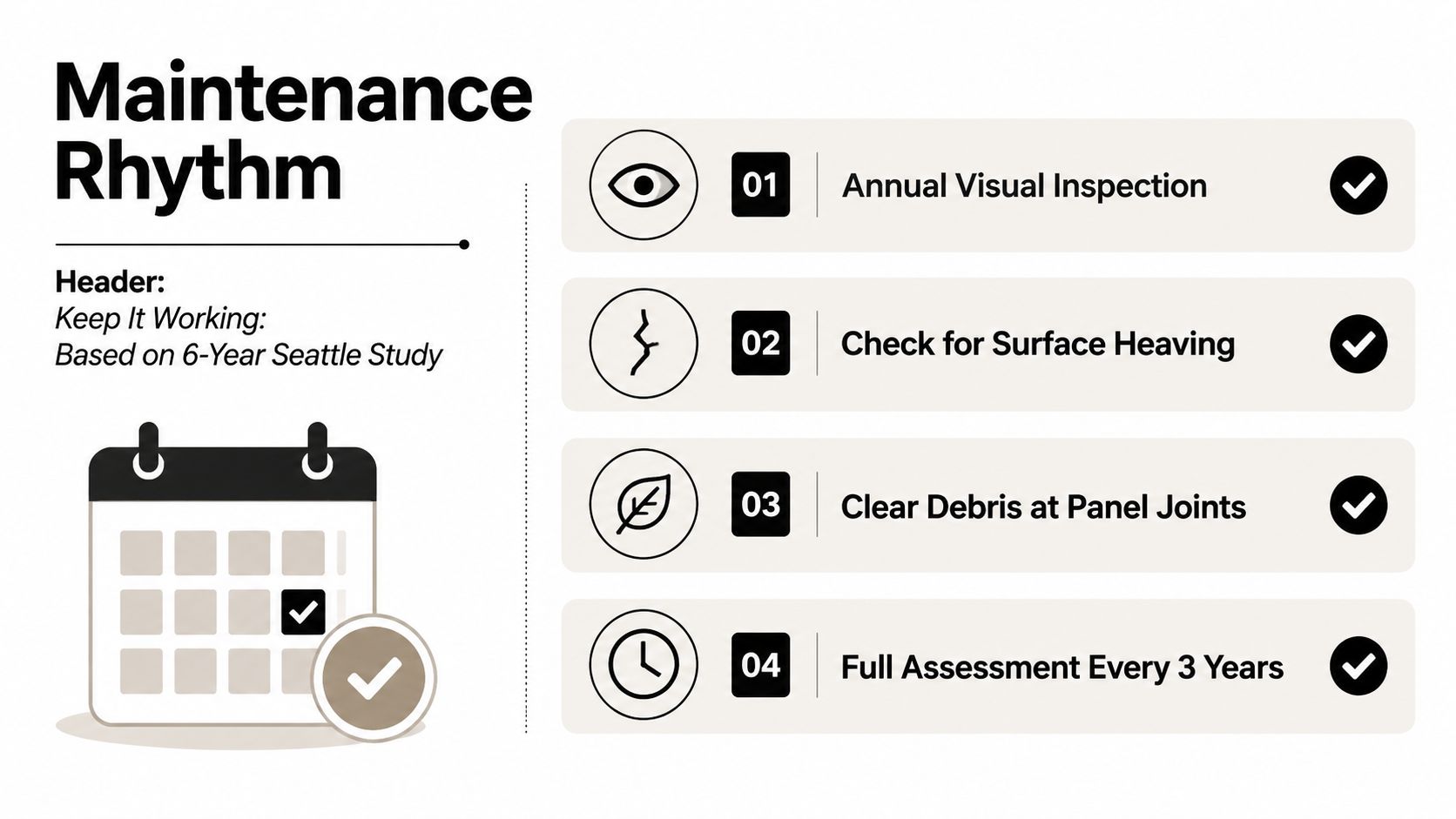

Keeping Your Barrier Working for Years
Installation is only the beginning. A six-year evaluation found sustained control from correctly designed circular physical barriers, making six years a useful field benchmark for homeowners who want to know whether the system is still performing rather than assuming buried plastic will solve the problem forever. Maintenance doesn't make a poor installation effective, but it can catch the bypasses that develop as clay settles and roots test the upper edge.
Inspect before the spring root flush
Late winter is a practical inspection window. Walk the trench line and look for:
- Exposed barrier: Soil erosion or settlement can lift the top edge into view.
- Open seams: HDPE panels can separate if joints weren't overlapped or secured properly.
- Surface heaving: New cracks or raised pavement can indicate roots bypassed the barrier.
- Root tendrils: Small roots at the top edge may signal a route over the wall.
- Clay settlement: Add compatible backfill where the trench has subsided.
- Standing irrigation water: Persistent moisture against the barrier can encourage shallow rooting and create a new pathway.
Don't bury warning signs under mulch. Photograph changes and compare them with your original site record. If the protected slab continues moving, bring in an arborist and, where appropriate, a foundation or drainage professional. Roots may be involved, but clay movement, water discharge, soil compaction, and construction defects can create similar symptoms.
Mature trees in heavy North Georgia clay can still send roots beneath a properly installed 60 cm barrier. That limitation is central to responsible tree root barrier installation. The barrier redirects a route, while annual observation tells you whether the tree has found another one.
For the Marietta homeowner with the sweetgum near the garage, the best outcome isn't a buried panel. It's a documented layout, adequate depth, intact seams, protected roots, and a maintenance habit that catches movement before a hairline crack becomes a larger repair decision.
